Gamintojo detalės numeris
ANT0627Y8-NF
Garantija
?
24 mėn.
EAN
0708747435061

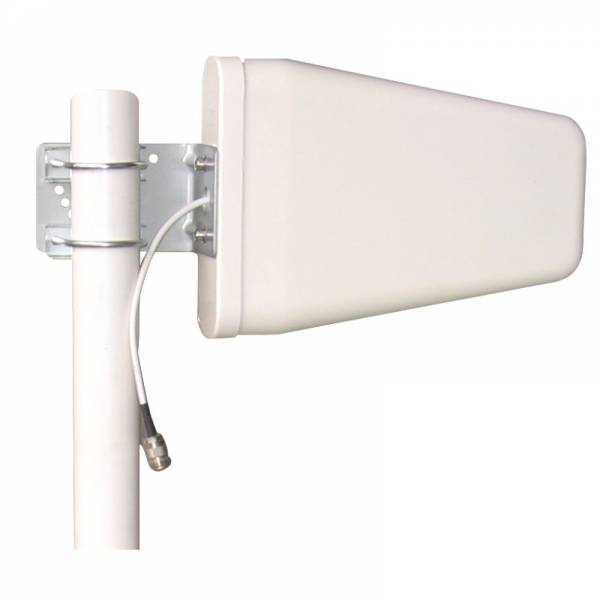

LTE Plačiajuosčio ryšio kryptinė antena 8dBi
Šis elementas buvo nutrauktas
Mes rekomenduojame naudoti žemiau pateiktą produktą
Turimos alternatyvos
Specifikacijos
Antena
Antenos Dizainas
Yagi
Mobiliosios Antenos Dažnių Diapazonas Ir Stiprinimas
0.698 - 0.960 (GHz) 8 (dBi), 1.710 - 2.700 (GHz) 8 (dBi)
Mobiliosios Antenos Stiprinimas
8 dBi
Spindulio plotis
110 ° Vertikali, 90 ° Horizontalus
Poliarizacija
Vertikali
Kabelio Ilgis
0.2 m
VSWR
< 1.5
Varža
50 Ω
F/B santykis
> 20 dB
Maksimali Įėjimo Galia
100 W
Jungtis
RF jungtys
(1) N Female
Fiziniai Parametrai
Spalva
Pilka
Medžiaga
ABS plastiko
Matmenys
290 x 210 x 65 mm
Svoris
1.5 kg
Darbinė temperatūra
-40 °C iki 70 °C
Aplinka
Lauko
Montavimo būdas
Montavimas ant stulpo
