Prekinis ženklas
Gamintojo detalės numeris
AOA-M4G
Garantija
?
24 mėn.
EAN
4718050305575

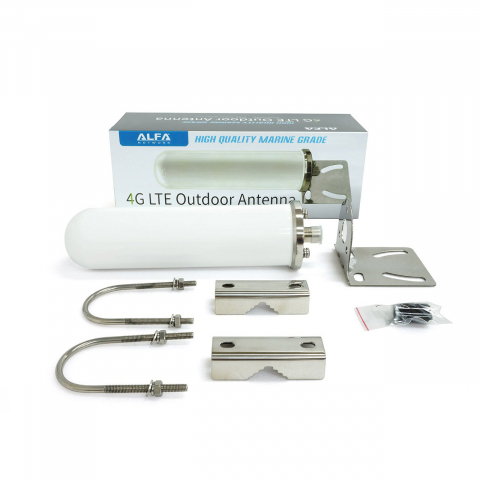

4G LTE lauko antena 6dBi, jūrinė klasė
turime
?
59.88 €
59.88 €
Suderinami produktai
Specifikacijos
Mobilusis Tinklas
Mobiliojo tinklo generavimas
4G (LTE)
Antena
Antenos Dizainas
Omni
Mobiliosios Antenos Dažnių Diapazonas Ir Stiprinimas
0.698 - 0.96 (GHz) 4 (dBi), 1.71 - 2.7 (GHz) 6 (dBi)
Mobiliosios Antenos Stiprinimas
4 dBi, 6 dBi
Spindulio plotis
18 ° Vertikali, 360 ° Horizontalus
Poliarizacija
Vertikali
VSWR
< 1.5
Varža
50 Ω
Maksimali Įėjimo Galia
100 W
Jungtis
RF jungtys
(1) N Female
Fiziniai Parametrai
Spalva
Baltas
Medžiaga
Stiklo pluošto
Apsaugos nuo patekimo kodas
Jūrinė klasė
Matmenys
Ø63 x 220 mm
Svoris
1.2 kg
Darbinė temperatūra
-40 °C iki 70 °C
Aplinka
Lauko
Montavimo būdas
Montavimas ant stulpo
Nominalus vėjo greitis
60 m/s
